Lesson 3.6 — Unsteady Flows and Time-Stepping

When Does Time Matter?

Many engineering flows are unsteady — the solution changes meaningfully with time:

  • Vortex shedding behind a cylinder (Lesson 2.7)
  • Turbomachinery: rotor-stator interaction
  • Aeroelastic flutter of wings
  • Pulsatile blood flow in arteries
  • Combustion instabilities

For steady RANS (SIMPLE): treat time as a relaxation parameter → drive to steady state. For unsteady flows: the time integration must be accurate, not just stable.

Time-Stepping Schemes

Explicit Euler (first-order): un+1=un+Δt F(un)u^{n+1} = u^n + \Delta t \, F(u^n)

Second-order Adams-Bashforth (explicit, 2nd order): un+1=un+Δt(32F(un)−12F(un−1))u^{n+1} = u^n + \Delta t \left( \frac{3}{2} F(u^n) - \frac{1}{2} F(u^{n-1}) \right)

Crank-Nicolson (implicit, 2nd order, unconditionally stable for diffusion): un+1=un+Δt2[F(un)+F(un+1)]u^{n+1} = u^n + \frac{\Delta t}{2} \left[ F(u^n) + F(u^{n+1}) \right]

BDF2 (Backward Differentiation, implicit, 2nd order — used in OpenFOAM backward scheme): 3un+1−4un+un−12Δt=F(un+1)\frac{3u^{n+1} - 4u^n + u^{n-1}}{2\Delta t} = F(u^{n+1})

RK4 (explicit, 4th order — expensive but very accurate for smooth flows): k1=F(un),k2=F(un+Δt2k1),…k_1 = F(u^n), \quad k_2 = F(u^n + \frac{\Delta t}{2}k_1), \ldots un+1=un+Δt6(k1+2k2+2k3+k4)u^{n+1} = u^n + \frac{\Delta t}{6}(k_1 + 2k_2 + 2k_3 + k_4)

Dual Time-Stepping

For implicit unsteady solvers (like PISO in OpenFOAM), an inner iteration loop converges the solution at each physical time step. This is dual time-stepping:

  • Outer loop: physical time tt (controlled by accuracy requirements)
  • Inner loop: pseudo-time τ\tau (driven to convergence using large Δτ\Delta\tau)

The physical time step Δt\Delta t can be large (accuracy-limited), while the pseudo-time step Δτ\Delta\tau is tuned for fast inner convergence.

Choosing Δt\Delta t: The Courant Number

For unsteady simulations, the Courant number must be ≤1\leq 1 for explicit schemes:

Co=∣u∣ΔtΔx≤1Co = \frac{|\mathbf{u}| \Delta t}{\Delta x} \leq 1

For implicit schemes, CoCo can exceed 1 (unconditionally stable) but accuracy degrades. For resolving flow features accurately: Co<0.5Co < 0.5 in the region of interest.

import numpy as np
import matplotlib.pyplot as plt

# Compare time-stepping schemes on 1D ODE: du/dt = -u (exponential decay)
# Exact: u(t) = exp(-t)

def euler_explicit(u0, dt, T):
    u, t = u0, 0.0
    us, ts = [u], [t]
    while t < T:
        u = u + dt*(-u)
        t += dt
        us.append(u); ts.append(t)
    return np.array(ts), np.array(us)

def adams_bashforth2(u0, dt, T):
    u, t = u0, 0.0
    F_old = -u0
    # First step: Euler
    u = u0 + dt*F_old
    t += dt
    us, ts = [u0, u], [0.0, t]
    while t < T:
        F_new = -u
        u_new = u + dt*(1.5*F_new - 0.5*F_old)
        F_old = F_new
        u = u_new
        t += dt
        us.append(u); ts.append(t)
    return np.array(ts), np.array(us)

def rk4(u0, dt, T):
    u, t = u0, 0.0
    us, ts = [u0], [0.0]
    while t < T:
        k1 = -u
        k2 = -(u + dt/2*k1)
        k3 = -(u + dt/2*k2)
        k4 = -(u + dt*k3)
        u = u + dt/6*(k1 + 2*k2 + 2*k3 + k4)
        t += dt
        us.append(u); ts.append(t)
    return np.array(ts), np.array(us)

T = 4.0
dt = 0.5  # fairly large step

t_exact = np.linspace(0, T, 200)
u_exact = np.exp(-t_exact)

t_eu, u_eu = euler_explicit(1.0, dt, T)
t_ab, u_ab = adams_bashforth2(1.0, dt, T)
t_rk, u_rk = rk4(1.0, dt, T)

fig, axes = plt.subplots(1, 2, figsize=(13, 5))

axes[0].plot(t_exact, u_exact, 'k-', linewidth=2, label='Exact $e^{-t}$')
axes[0].plot(t_eu, u_eu, 'r-o', markersize=6, label='Euler (1st order)')
axes[0].plot(t_ab, u_ab, 'b-s', markersize=6, label='Adams-Bashforth2')
axes[0].plot(t_rk, u_rk, 'g-^', markersize=6, label='RK4')
axes[0].set_xlabel('t'); axes[0].set_ylabel('u')
axes[0].set_title(f'Temporal schemes: $du/dt = -u$, $\\Delta t = {dt}$')
axes[0].legend(); axes[0].grid(True, alpha=0.3)

# Convergence study
dt_vals = [0.5, 0.25, 0.125, 0.0625, 0.03125]
T_test  = 2.0
u_ref   = np.exp(-T_test)

errs_eu  = [abs(euler_explicit(1.0, dt, T_test)[1][-1] - u_ref) for dt in dt_vals]
errs_ab  = [abs(adams_bashforth2(1.0, dt, T_test)[1][-1] - u_ref) for dt in dt_vals]
errs_rk  = [abs(rk4(1.0, dt, T_test)[1][-1] - u_ref) for dt in dt_vals]

axes[1].loglog(dt_vals, errs_eu, 'r-o', markersize=6, label='Euler O(dt)')
axes[1].loglog(dt_vals, errs_ab, 'b-s', markersize=6, label='AB2 O(dt²)')
axes[1].loglog(dt_vals, errs_rk, 'g-^', markersize=6, label='RK4 O(dt⁴)')

# Reference slopes
dts = np.array(dt_vals)
axes[1].loglog(dts, 0.5*dts,    'k--', alpha=0.5, label='$O(\\Delta t)$')
axes[1].loglog(dts, 0.3*dts**2, 'k:',  alpha=0.5, label='$O(\\Delta t^2)$')
axes[1].loglog(dts, 0.1*dts**4, 'k-.', alpha=0.5, label='$O(\\Delta t^4)$')

axes[1].set_xlabel('$\\Delta t$'); axes[1].set_ylabel('Error at $t=2$')
axes[1].set_title('Temporal order of accuracy')
axes[1].legend(fontsize=8); axes[1].grid(True, which='both', alpha=0.3)

plt.tight_layout()
plt.show()

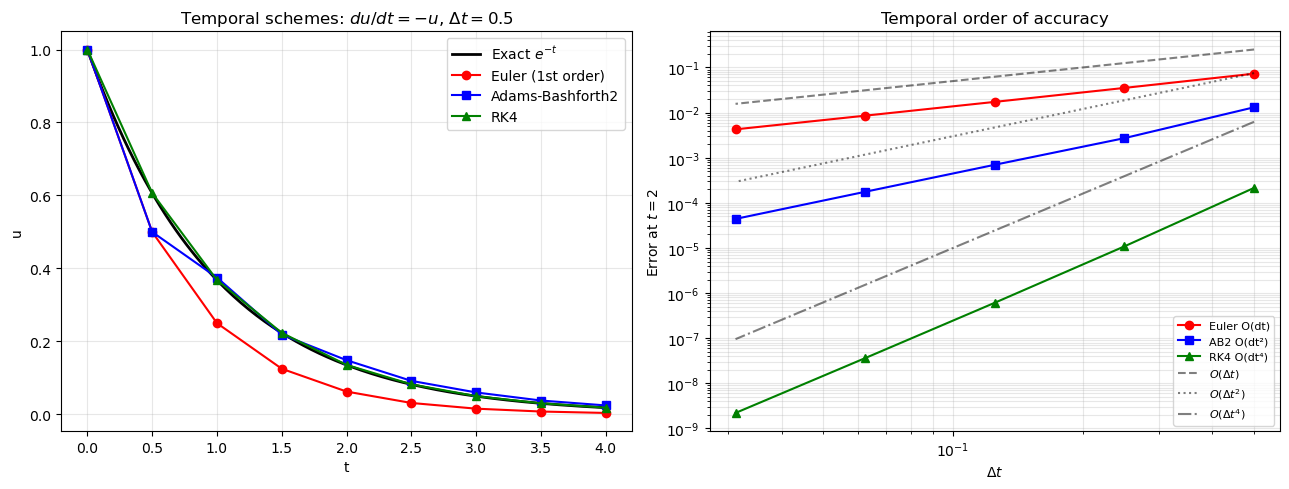

Figure 1

# Demonstration: stability regions of explicit time-stepping schemes
# For du/dt = lambda*u, scheme is stable if |G(lambda*dt)| <= 1

n = 300
x_lim, y_lim = 4, 4
re_vals = np.linspace(-x_lim, 1, n)
im_vals = np.linspace(-y_lim, y_lim, n)
RE, IM = np.meshgrid(re_vals, im_vals)
Z = RE + 1j*IM  # z = lambda*dt

# Amplification factors
G_euler = np.abs(1 + Z)
G_rk4   = np.abs(1 + Z + Z**2/2 + Z**3/6 + Z**4/24)

fig, axes = plt.subplots(1, 2, figsize=(12, 5))
for ax, G, title in zip(axes, [G_euler, G_rk4], ['Euler', 'RK4']):
    cf = ax.contourf(RE, IM, G, levels=[0, 0.5, 1.0, 1.5, 2.0], cmap='RdYlGn_r')
    ax.contour(RE, IM, G, levels=[1.0], colors='black', linewidths=2)
    plt.colorbar(cf, ax=ax, label='|G| (amplification)')
    ax.set_xlabel('Re($\\lambda \\Delta t$)'); ax.set_ylabel('Im($\\lambda \\Delta t$)')
    ax.set_title(f'{title}: stability region (|G| ≤ 1 inside black contour)')
    ax.axhline(0, color='gray', linewidth=0.5)
    ax.axvline(0, color='gray', linewidth=0.5)
    ax.text(-3, 3, '|G|<1\nStable', ha='center', color='green', fontsize=10)
    ax.text(-0.5, 3.5, '|G|>1\nUnstable', ha='center', color='red', fontsize=10)

plt.suptitle('Stability regions of explicit schemes in the $\\lambda\\Delta t$ plane', fontsize=13)
plt.tight_layout()
plt.show()

print("Diffusion eigenvalues are negative real → stay on left half-plane.")
print("Advection eigenvalues are imaginary → need scheme with imaginary-axis coverage.")

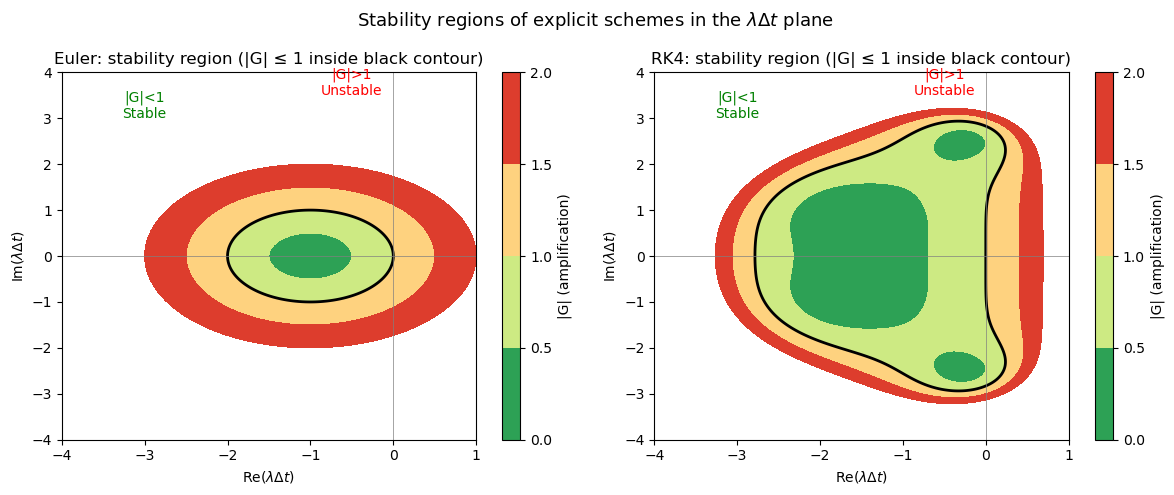

Figure 2

Diffusion eigenvalues are negative real → stay on left half-plane.
Advection eigenvalues are imaginary → need scheme with imaginary-axis coverage.

Key Takeaways

  • Unsteady flows require time-accurate integration, not just a relaxation to steady state.
  • Explicit schemes (Euler, RK4): simple, limited by CFL. Implicit (Crank-Nicolson, BDF2): stable at any Δt\Delta t.
  • For accuracy in unsteady flows: use at least 2nd-order time integration.
  • Dual time-stepping: inner loop converges each physical time step using large pseudo-time steps.
  • Co<1Co < 1 for explicit; Co<10Co < 10–50 for implicit (with accuracy check).
  • OpenFOAM: Euler (1st, steady-state), backward (2nd, BDF2), CrankNicolson 0.9 (implicit 2nd).

Next: Lesson 3.7 — Compressible Flow: Euler equations, Mach number, shock capturing.
